Verifying thermistor chain logging dynamic heat transfer

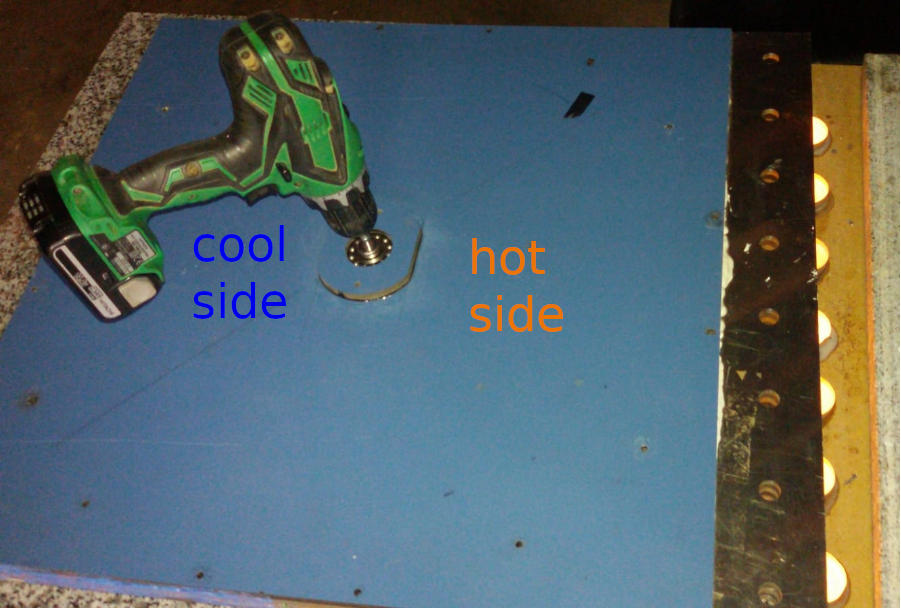

Closed System Heat Transport
TEST: Verifying thermistor chain logging dynamic heat transfer.

Still using candles as heat source but now with a closed "Green Revolution Energy Converter" and now also rotating the internal two disk "Revolving Shutter" with an electric screwdriver to verify the temperature sensors while logging the dynamic heat transfer and to confirm our expectations. The "Green Revolution Energy Converter" is not yet air tight so we are not monitoring the pressure. This test is only verifying the logging capability of the heat transport:
- from the warm source (candles) to the Revolution Energy Converter hotside conducting aluminium fin and the transport within the fin monitored by its three pt500 heat sensors-
- heat leaving the hot side conducting fin from its surfaces into the gas of the "Work Generating Volume" opening of the "Revolving Shutter". The temperature of the gas is measured by the two pt500 sensors of the paired insulating "nil" fin. So these two sensors are ment to measure the temperature of the air/gas in the Work Generating Volume passing the isolating nil fin between the hot and the cold conducting areas (not the temperature of the material of the insulated "nil" fin, although there is a relation.)-
- the heat is carried by the gas of the Work Generating Volume in the turning Revolving Shutter over to the side where the cooler conducting fins surfaces are absorbing the heat, from the gas into the conducting cooler metal.-
- from the Green Revolution Energy Converter cool-side conducting fins into the ambient air (cold sink).

Notes:
-I'm sure you noted that candles are not a very powerfull heat source, but enough to verify the heat transfer.
-Unfortunaly the conducting fin surfaces are still covered with a coat of paint that we used when tracing the Revolving Shutter friction. Heat transfer from the conducting fin surface into the Work Generating Volume of gas propably stays reduced until this coat is removed.
-The cool-side conducting fins only connects to the ambient air as a cold sink. The area of the surface in contact with ambient air is limited and unfortunately also still coated with gasket paste since our outdoor experiments.
